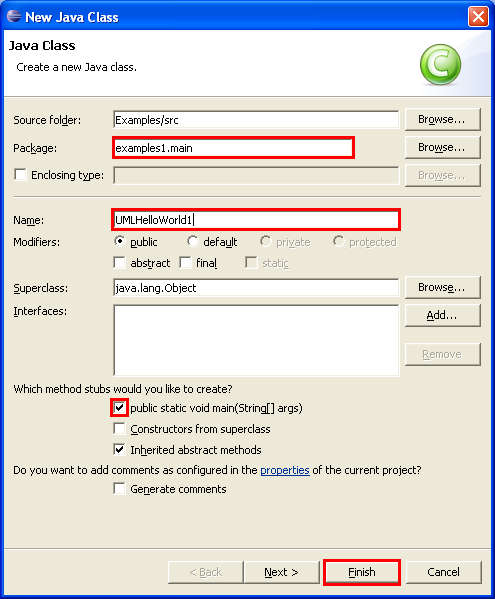

41. Enter examples1.main as the "Source folder:", UMLHelloWorld1 as the "Name", and check the public static void main(String[] args). Select the Finish button.



42. We'll next define the path to the dicon configuration file. The path may be directly entered in the program, but it is a better practice to define it as a static final variable.



43. Right click on the main.UMLHelloWorld1 and select New - Attribute.

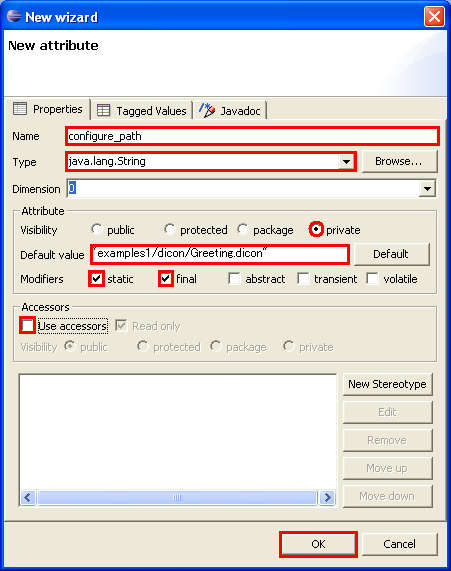

44. Enter configure_path as the "Name", java.lang.String, enter "examples1/dicon/Greeting.dicon" as the Default value, select private as the "Visibility of Attribute", check static and final as Modifiers, and uncheck Use accessors.
    Select the OK button.



45. We'll now enter codes to the main method.
    Double click on "main.UMLHelloWorld1" and select the UMLHelloWorld1.java. Enter the codes to the main method. Be sure to also add "import".

    package examples1.main;

    import org.seasar.framework.container.S2Container;
    import org.seasar.framework.container.factory.S2ContainerFactory;
    import org.seasar.framework.util.ResourceNotFoundRuntimeException;
    import examples1.GreetingClient;

    public class UMLHelloWorld1 {
      public static void main(String[] args) {
          try {
            S2Container container = S2ContainerFactory.create(configure_path);
                container.init();	// add to initialize components
                try {
                  GreetingClient greetingClient = (GreetingClient)container.getComponent("greetingClient");
                  greetingClient.execute();
              } finally {
                container.destroy();
              }
          } catch (ResourceNotFoundRuntimeException e){
            System.out.println("Configuration file \"" + configure_path + "\" not found.");
          }
      }


    	private static final String configure_path = "examples1/dicon/Greeting.dicon";
    }





46. Now for the final file - dicon configuration file. We'll create the file in the dicon folder.

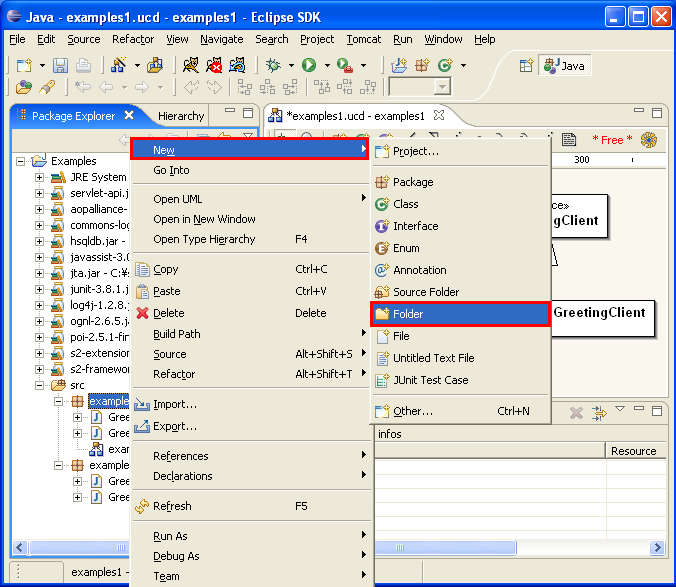

    Right click on examples1 under the "src". Select New - Folder in the context menu.

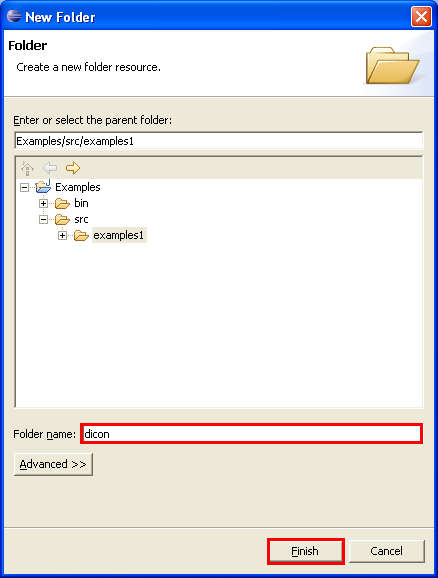

47. Enter dicon as the "Folder name". Select the Finish button.

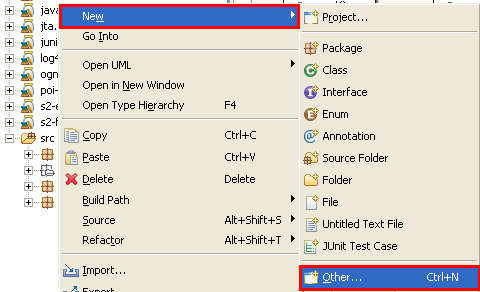

48. Right click on the examples1.dicon folder we just created. Select New - Other....

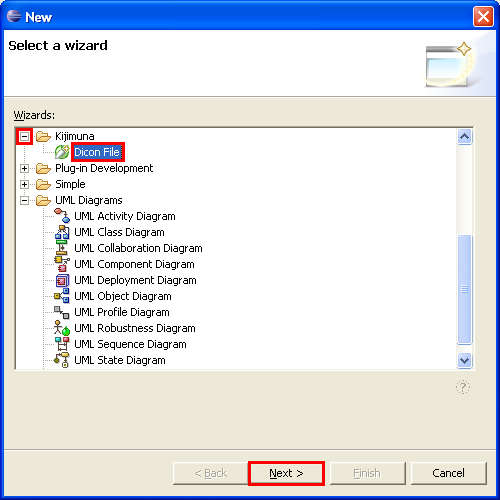

49. Expand Kijimuna - Dicon File and select the Next > button.

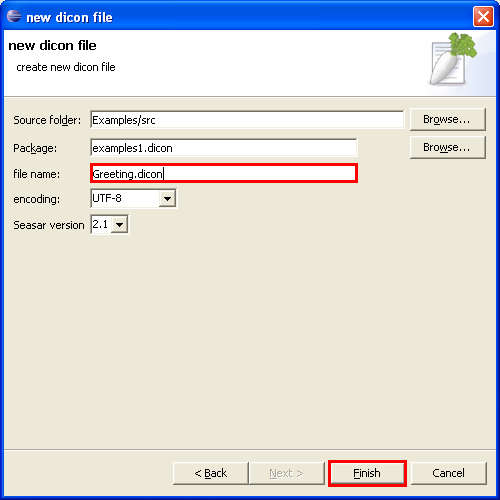

50. Enter Greeting.dicon as the file name and select the Finish button.

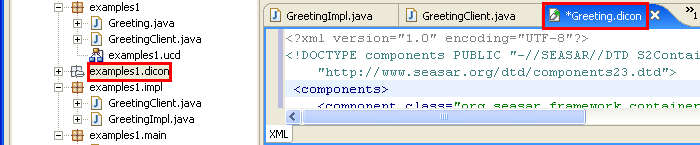

51. Select the examples1.dicon and select the Greeting.dicon tab.
    Enter the codes as follows:

    <?xml version="1.0" encoding="UTF-8"?>
    <!DOCTYPE components PUBLIC "-//SEASAR//DTD S2Container 2.3//EN"
        "http://www.seasar.org/dtd/components23.dtd">
     <components>
      <component name="greeting" class="examples1.impl.GreetingImpl">
      </component>
      <component name="greetingClient" class="examples1.impl.GreetingClientImpl">
        <property name="greeting">greeting</property>
      </component>
    </components>





52. That's it. We are now ready to run the program!

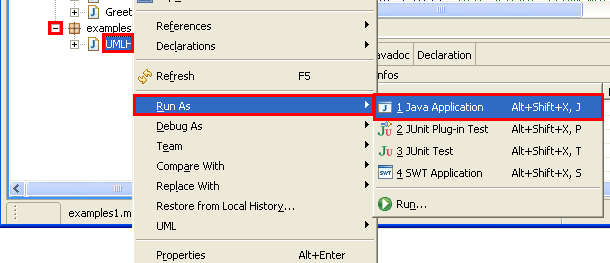

    Right click on UMLHelloWorld1.java and select Run AsJava Application.

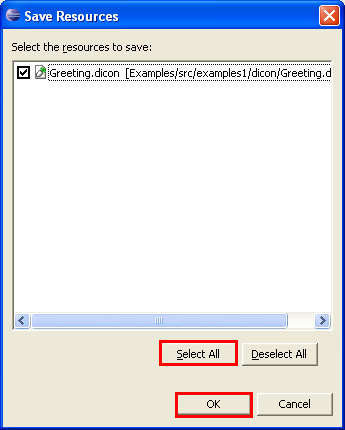

53. If a "Save Resources" dialog appears, select Select All and then select the OK button to save all the files we created.



54. "UML Hello World1" should appear in the "Console" as in the following image.
    If there is an error, move on to the the debug tutorial.
